Home > Products > parking ticket system > JD-3 explosion-proof dispatch winch JD-4

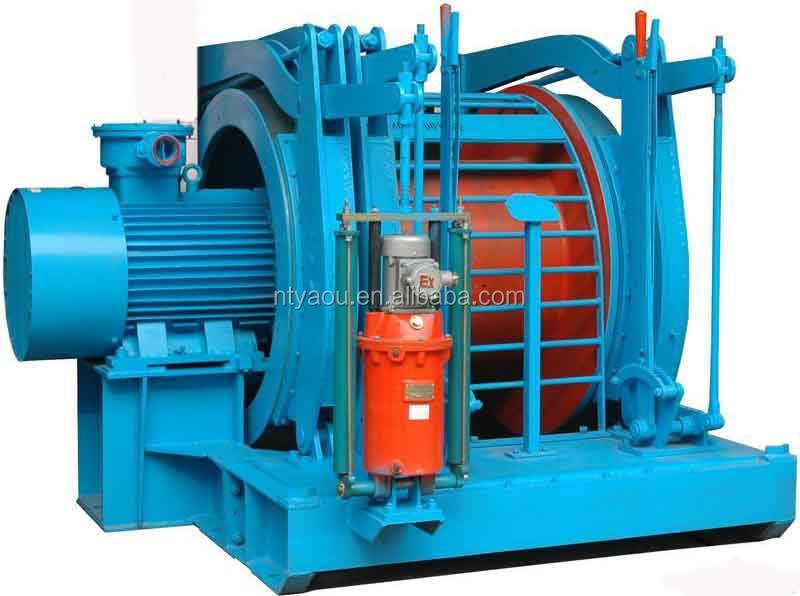

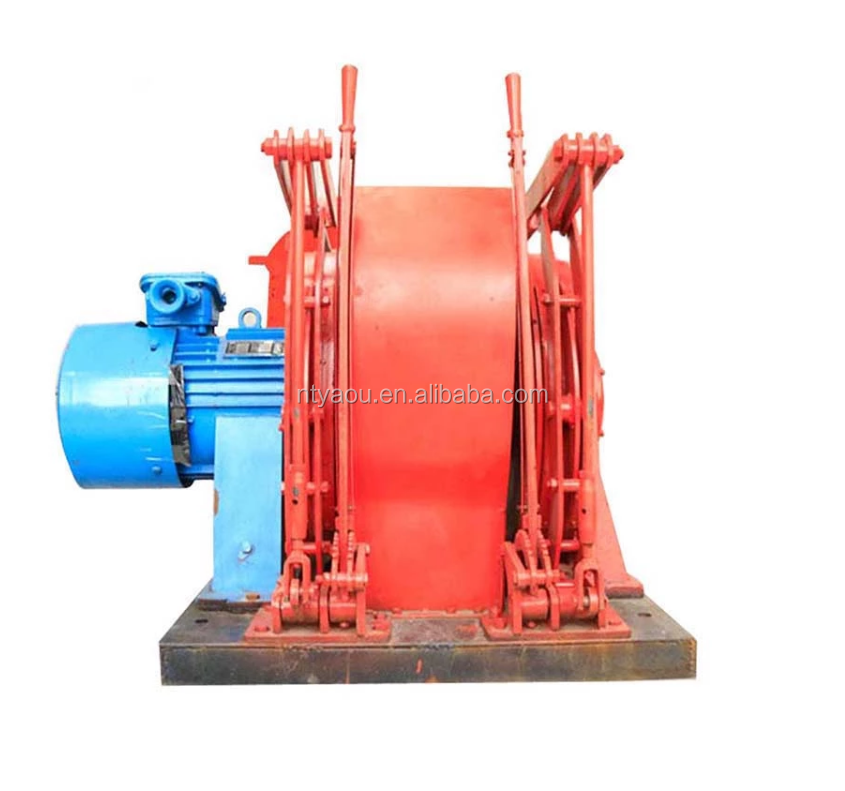

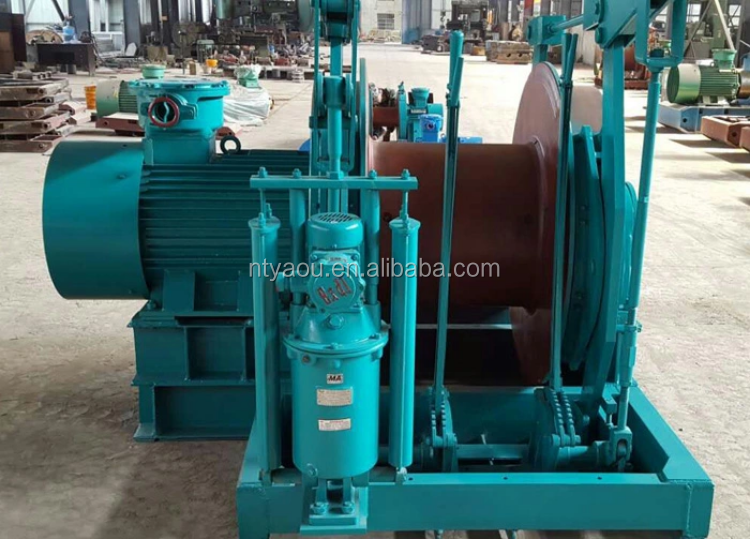

JD-3 explosion-proof dispatch winch JD-4

  • JD-3 explosion-proof dispatch winch JD-4
  • JD-3 explosion-proof dispatch winch JD-4
  • JD-3 explosion-proof dispatch winch JD-4
  • JD-3 explosion-proof dispatch winch JD-4

JD-3 explosion-proof dispatch winch JD-4

    Unit Price: 1600~2000 USD
    Min. Order: 1 Set/Sets
    Packaging: Export standard packing
    Productivity: 10
    Transportation: Ocean,Land
    Place of Origin: CHINA
    Supply Ability: 10
    Certificate: CE
    HS Code: 8425399000
    Port: SHANGHAI

Basic Info

Model No.: JD-3

Product Description


Products Description
JD dispatching winch is used for dispatching trolleys in underground parking lots, middle roadways, mining transportation lanes in mines, dragging or carrying heavy loads. We can design and manufacture different types of dispatching winch with Maximum pulling force 10-40KN.
Maximum pulling force 10-40KN.
traction
40 kN
Outer wire rope maximum speed(m/s)
1.25
reel diameter (mm)
620
width(mm)
580
reel cope capacity (m)
>400
wire rope
φ22mm
total transmission ratio
42.24
motor
model
YBJ40-4
power(kW)
45
speed(r/min)
1480
voltage(V)
380/660
accessory electric equipment
mining explosion-proof reversible magnetic starter
QBZ-80N(660V)
mining explosion-proof control button
LA810-3
dimension(length×width×height)(mm)
1900*2350*1370
weight of winch ( motor included) (Kg)
2815


Model
JD-1
JD-1.6
JD-2.5
JD-4
Parameter
Static tension of outer steel wire rope
10
16
25
40
Rope speed
Minimal
0.433
0.733
1.16
0.95
(M/s)
maximum
1.033
1.399
1.45
1.48
average
0.733
1.066
1.31
1.22
Capacity
Rope diameter (mm)
12.5
15
18.5
21.5
Rope length (m)
400
400
500
850
Roller size
Φ224×304
Φ310×400
Φ620×580
Φ580×600
(Diameter × width) (mm)
Total reduction ratio
41
32.5
42.24
32.75
Dimensions
1120×766×727
1435×1217×1255
1830×1794×1390
2200×1965×1425
(Length×Width×Height) (mm)
Winch weight
542
1370
2500
3750
(Including motor) (kg)
Flameproof motor
model
YBJ-11.4
YBJ-25
YBJ-40
YBK-280M-6-
Power (KW)
11.4
25
40
55
Speed (r/min)
1460
1465
1470
980
Voltage (V)
380/660
380/660
380/660
380/660
electrical equipment
Flameproof magnetic starter
Qc83-80N
Qc83-80N
Qc83-80N
BQZ-120N
Flameproof control button
LA81-3
LA81-3
LA81-3
LA81-3


Details Images
Product packaging
According to the volume and weight of the product and export requirements, provide multi-layer boxes and iron box packaging.
Transportation is based on customers in different regions using steam, rail, road and air transportation.
Company Profile

Rugao You Inport & Export Co. LTD was established in 2004, which was among the earliest trading companies strongly supported by Ministry of Foreign Trade and Economic Cooperation.Through the past ten years, our company has already established a deep strategic cooperation relation with domestic suppliers who specilizes in oil drilling equipments, and become the top level supplier of some well known large or medium sized SOEs such as CNPC and Sinopec. The products made by our company are exported to Europe, America, the Middle East, North Africa and Southeast Asia and other regions, because of which, we enjoy widespread praise among customers at home and abroad. Our mainly products: drilling rig parts, drilling equipment, solid control system, wellhead equipment, fishing tools, cementing tools. All the productions is within the standard of API and authorized by ISO9001:2000.

Our company mainly deals in hardware tools, combined tools, electric tools, special tools for petroleum, metal processing machinery and petroleum drilling equipment. Diagonal Cutting Plier,Oil Drill Pipes,Drilling Tools,Diesel Engine Etc.Our companyoperates hardware tools and has established long-term and stable cooperative relations with many retailers.

Main products:
1. Drill Pipe, Heavy Drill Pipe, Square & Hexagonal Kelly
2. Drill Collar & Non-magnetic Drill Collar
3. Stabilizers, Reamer, Hole Opener, Casing Scraper, etc
4. Kelly Valve, Safety valve, Check valve, and float valve
5. Hydraulic or Mechanical Drilling Jar, and Absorber
6. Fishing tools (Bowen serials), including overshot, spear, etc
7. Junk Mill, Casing Cutter, Safety Joint, etc
8. Hydraulic Bucking unit, Screw up and breakout Unit, Down hole motor tester, Jar tester, etc.
9 .Down hole motor
10. Processing machinery: shears, bending machines, hydraulic presses, bending machines, etc.
11. Various coal mine winches, oil field winches, ship winches, etc.
12. Various hand tools and electric tools.

Certifications
Recommend Products
FAQ
Q1. How to get an accurate quotation?
A1: The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output,
Q2. What if I use this machine for the first time and know nothing of it ?
A2: We will have our engineers teach you how to operate it,you can just inform us some details of the product you need then we can customize as your special order.
Q3. How does your factory do regarding quality control?
A3: We has been regard quality as the priority. We always attach great importance to quality controlling from the very beginning to the very end ,so our press can match all the CE and ISO standard also more strict standard .
Q4. How about your delivery time?
A4: Generally, it will take 35 working days after receiving your deposit payment. The specific delivery time depends on the items and the quantity of your order. Sometimes we have standard machines in stock.
Q5. What is the warrantee period of the machine?
A5: We can supply 1 year warranty for our machines, We can send engineer to customer place if big quality problem. We can provide internet or calling service at any time.
Q6. after-sales service
A6: 1. Installation:Free installation and commissioning, travel expense is on foreign customer.(Including round ticket and
accommodation cost)
2. Personnel training: Our engineers will give your employees free machine training when they come to your company to assemble the machines, and welcome to our factory to learn how to operate our machineQ1. How to get an accurate quotation?
.
